Non-Asbestos FiberCement Siding For Exterior Facade
Chinsun Fiber Cement Siding is strong and flexible board composed of cement,refined ores,reinforced cellulose fiber as the main materials.It's made of autoclaved process under high temperature and pressure which generates a light-weight,durable and smooth-faced board for various applications of interior and exterior decoration.
It's 100% Non-asbestos and environmental friendly building product.The board is water-proofing and incombustible which makes it more popular in the modern building industry.
Specication and Product Date
| Raw Materials | Cellulose Fiber, Quartz Sand, Portland Cement |
| Standard Size | 1220X2440MM / 1200X2400MM |
| Maxium Width | 1250MM |
| Maximum Length | 3660MM |
| Thickness | 3.5-25MM; |
| Density | 3 Series: 1.3-1.4G/CM3; 1.4-1.6G/CM3; 1.6-1.7G/CM3 |
| Wet Expansion | ≤0.23% |
| Water Absorption | ≤26% |
| Incombustibility | Incombustible Class A1 |
| Water Penetration | Back side without water drop after 24 hours |
| Flexural Strength | Air dried condition: ≥12; Saturated Condition: ≥8 |
| Radioactivity | Decorative materials Class A |
| Asbestos | 100% free of asbestos |
| Certification | ISO, CE, SGS |
| Packaging | Standard wooden pallet |
| Trade Terms | FOB, CNF, CIF |
| Payment Terms | T/T, Irrevocable L/C at sight |
| Delivery Time | Within 15 days after order confirmed |
| Main Characteristic | Environmental friendly materials |
| Excellent Strength and toughness | |
| Waterproofing and fireproofing | |
| Antisepsis and moth-proofing | |
| Good acoustic insulation and weather resistance | |
| Good thermal and heat insulation | |
| Durability and long lifetime | |

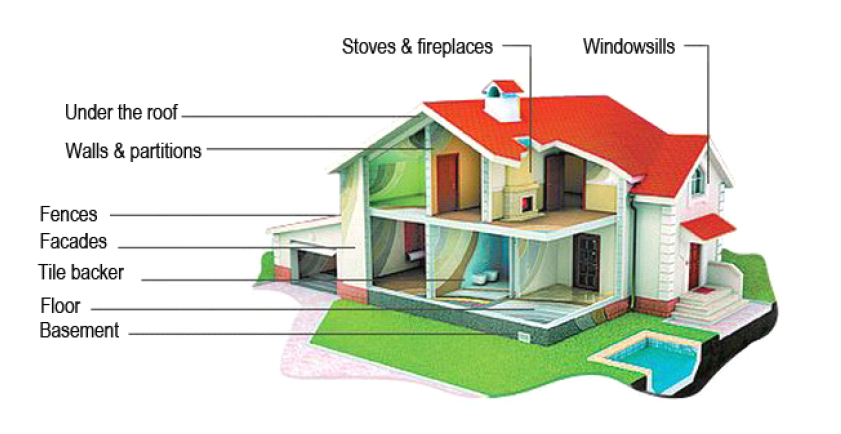

| Application | Cavity wall for interior partition |
| High sound insulation requirement wall panel | |
|
fireproof wall panel |
|
| partation wall panel | |
| Light concrete grouting wall | |
| Ceiling board | |
| Perforated Board | |
| Aluminium lining board and insulation barriers for high-speed train | |
| Column coverage | |
|
Lining panel |
|
| Exterior siding/cladding panel | |
| Exterior wall thermal insulation decoration panel | |
| Interior/Exterior wall decoration panel | |
| Flooring; Loft interlayer,Container house, light steel villa | |
| Subay, tunnel baseboard, outdoor furniture board | |
| Thinner lining board for stone |

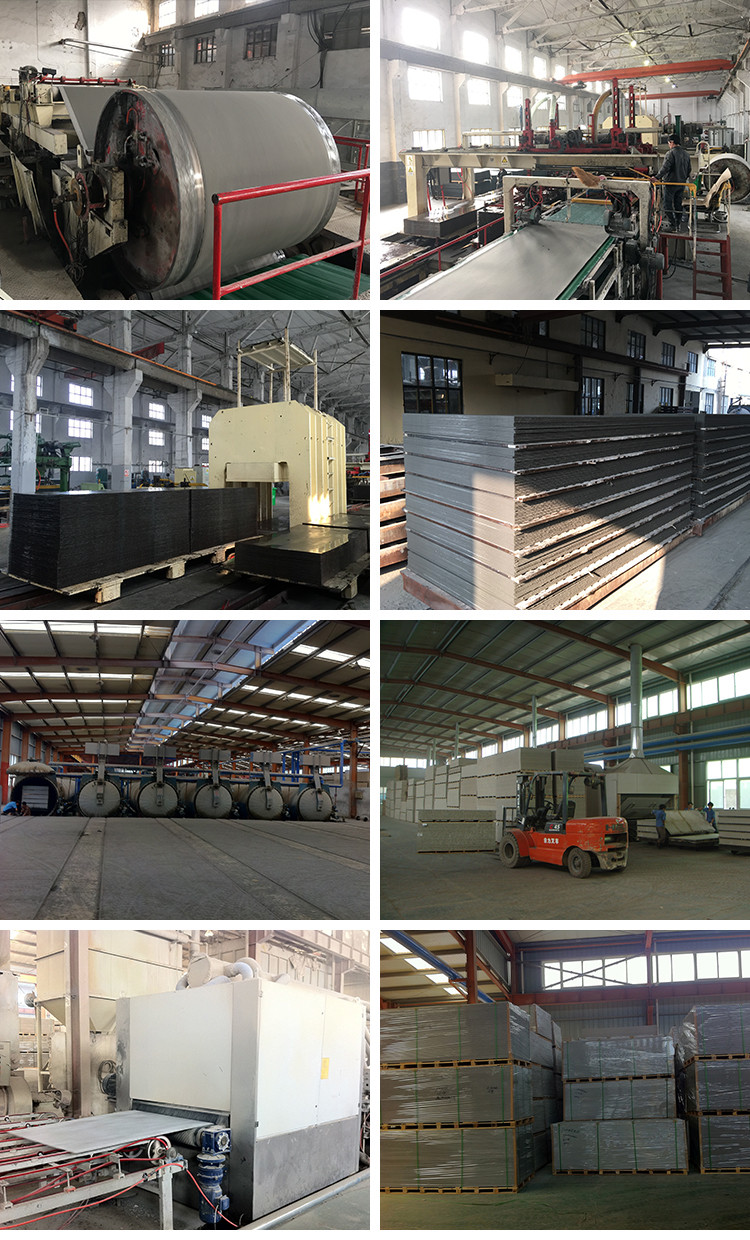

Production

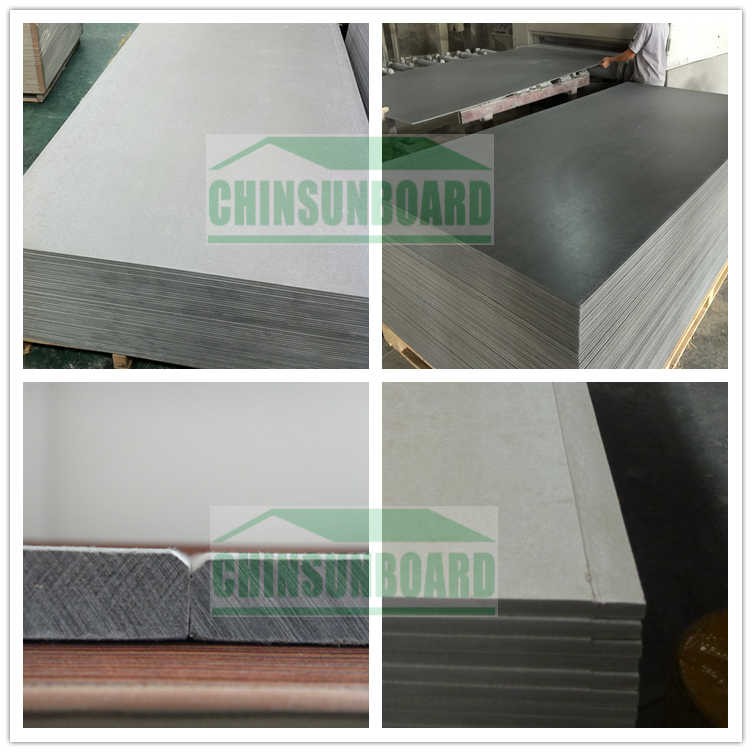

Fiber Cement Board Surface and Edge
Surface :Polished surface OR Sanded surface as your requirement
Edge:Squared edge/Tapered edge/Bevelled edge

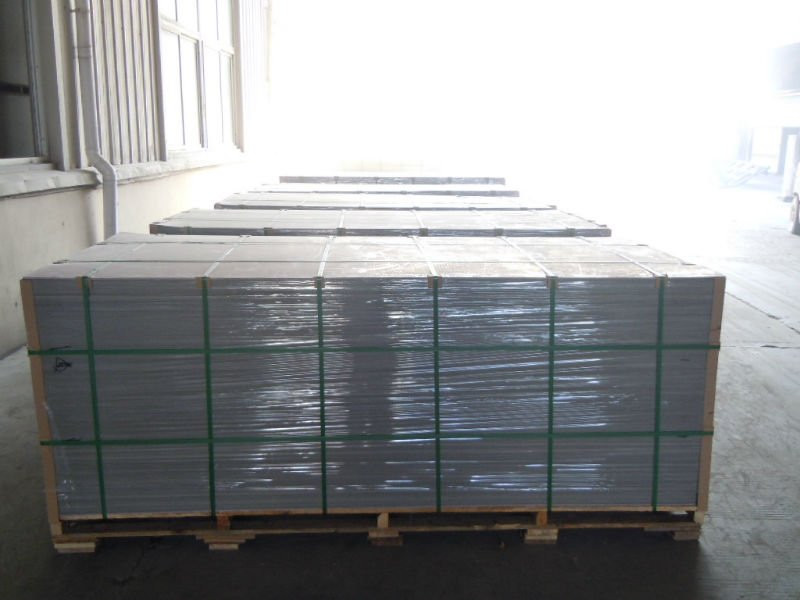

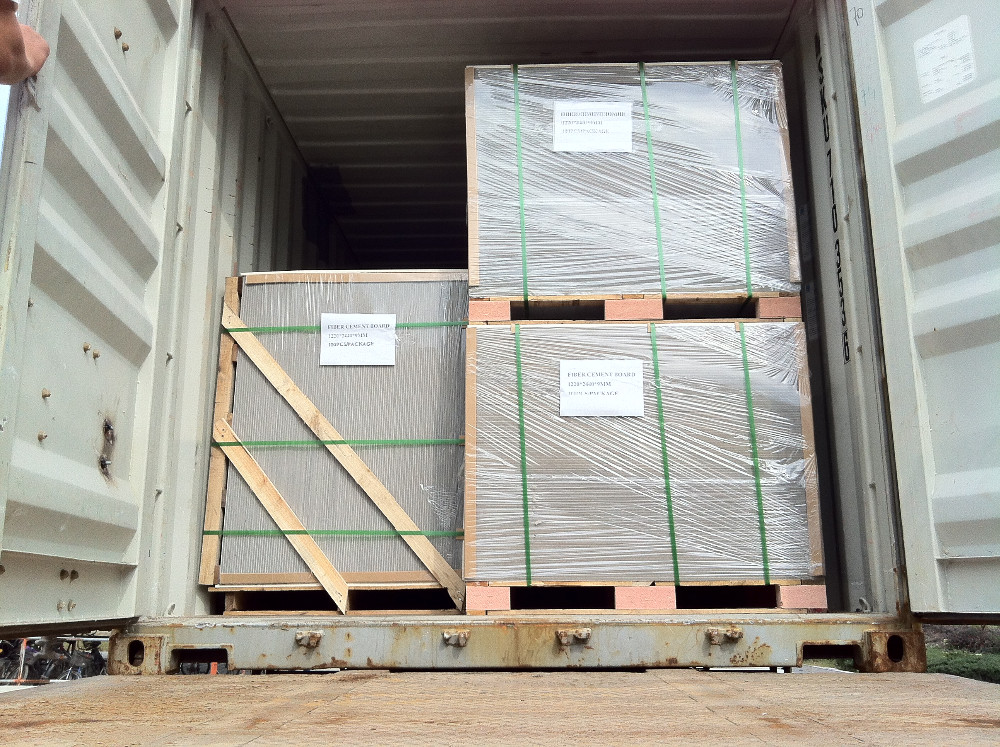

Fiber Cement Board Packing Information
Loading Quantity For Middle Density Board
| Size(mm) | Thickness(mm) | Weight(kg) |
Loading quantity
PCS/20CTN
|
|
1200*2400
1220*2440
|
5 | 20 | 1080 |
| 6 | 24 | 900 | |
| 8 | 32 | 690 | |
| 9 | 36 | 600 | |
| 10 | 40 | 540 | |
| 12 | 48 | 450 | |
| 15 | 60 | 360 | |
| 18 | 72 | 300 | |
| 20 | 80 | 270 |
Loading Quantity For High Density Board
| Size(mm) | Thickness(mm) | Weight(kg) |
Loading quantity
PCS/20CTN
|
|
1200*2400
1220*2440
|
5 | 24 | 930 |
| 6 | 29 | 780 | |
| 8 | 38.5 | 588 | |
| 9 | 43 | 516 | |
| 10 | 48 | 468 | |
| 12 | 58 | 390 | |
| 15 | 72 | 312 | |
| 18 | 86.5 | 260 | |
| 20 | 96 |
234
|
